Fault: Why does my DNS lookup return my own internal IP Address?

If you’re doing a NSLOOKUP for a DNS Name that resolves to your routers public IPv4 address you may find that the result returned from any external DNS server will resolve to your clients internal IP address. If you have an internal DNS server that is forwarding queries to an external DNS server then you may see the DNS servers IP address when querying.

Scenario: You have a server internally which you’re NATing from your outside interface on your Cisco router to an internal IP address. You run a dynamic DNS client to map WWW.YOURDOMAIN.COM to your public IP. Your clients on the LAN also use this router to get internet access using PAT/NAT Overload. You want to verify that the DNS entry has propagated to Google DNS so you perform an NSLOOKUP to or

Server: dns.google

Non-authoritative answer:

But if you try an online DNS check tool like MX Toolbox it will return the correct result or if you get someone else to try for you to the same External DNS server they get the correct result.

Investigation: Lets confirm what we appear to be seeing. To do this we will capture the DNS queries for an external website (www.google.com) and one to an entry mapped to my external IP (testdns.kierandrain.com).

Query from to requesting the ip for www.google.com

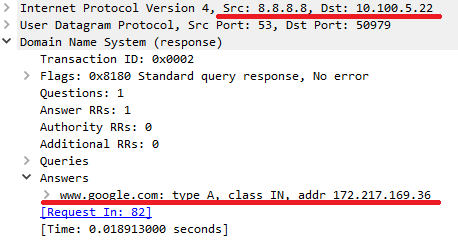

So we can see the reply to our query here and it has resolved www.google.com to correctly. Next we’ll test for testdns.kierandrain.com which is currently mapped to the public IP of my Cisco router.

Query from to requesting the ip for dnstest.kierandrain.com

So we can see this time that appears to have returned the IP address of the querying host. So why did return the incorrect result and how did google know what the local IP address was to return that in the query? As far as was concerned the request came from my public IP and my client was using NAT to contact

Problem Statement: In short any internal queries where the results IP matches the routers outside interface are somehow modified to return the querying hosts IP address. The same issue doesn’t affect IPv6 traffic.

Root cause: You might suspect that this behavior of the external IP being mapped to an internal one looks supiciously like a NAT issue but since NAT only affects the Layer 3 and Layer 4 information on the packets and we see application layer changes then surely this couldn’t be the case. Could it?

The culprit here is a feature known as ALG – Application Layer Gateway. This isn’t specific to Cisco however it does come enabled on all Cisco routers. ALG is intended to support traffic flows where NAT is being performed by changing application layer data on a packet to reflect the changes performed by NAT. This can however cause problems like the scenario above and particularly for SIP and VoIP traffic where the changes can actually cause the packets to become malformed.

As there’s nothing in our router configuration to tell us this is enabled you will need to use the all command when tryting to view the configuration.

Router#show run all | i ip nat service
ip nat service all-algs

As you can see all ALG services are currently enabled by default. To get a detailed view of the ALG subservices we can run the following command.

router(config)#ip nat service ?
H225              H323-H225 protocol
all-algs          Enable all NAT ALGs
dns               DNS protocol
dns-reset-tl      Reset dns cname ttl value
dns-v6            dns v6 packet processing
ftp               ftp protocol
fullrange         allocate all available port of 1024 to 65535
gatekeeper        Gatekeeper protocol
ipsec-esp         ipsec esp packet processing options
ldap              LDAP protocol
list              Specify access list describing global addresses
modify-in-progress Packet processing options when config is being modified and/or cleared
msrpc             MS-RPC protocol
netbios-dgm       NetBios datagram protocol
netbios-ns        NetBios name protocol
netbios-ssn       NetBios session protocol
pptp              PPTP protocol
ras               H323-RAS protocol
rcmd              RCMD protocol
rtsp              RTSP protocol
sip               SIP protocol
skinny            skinny protocol
sunrpc            SUNRPC protocol
tftp              TFTP protocol

Resolution: To resolve this issue we simply disable the NAT ALG service for DNS by issuing the No command for the service. Note we must do this for tcp and udp separately.

! Most modern IOS/IOSXE will disable the service using these commands
Router(config)#no ip nat service dns tcp
Router(config)#no ip nat service dns udp

! Some older IOS devices use the following format
Router(config)#no ip nat service alg udp dns
Router(config)#no ip nat service alg tcp dns

Now that this service is disabled the DNS lookups data will not be inspected/changed and so they will return the correct IP address for a client behind NAT.
